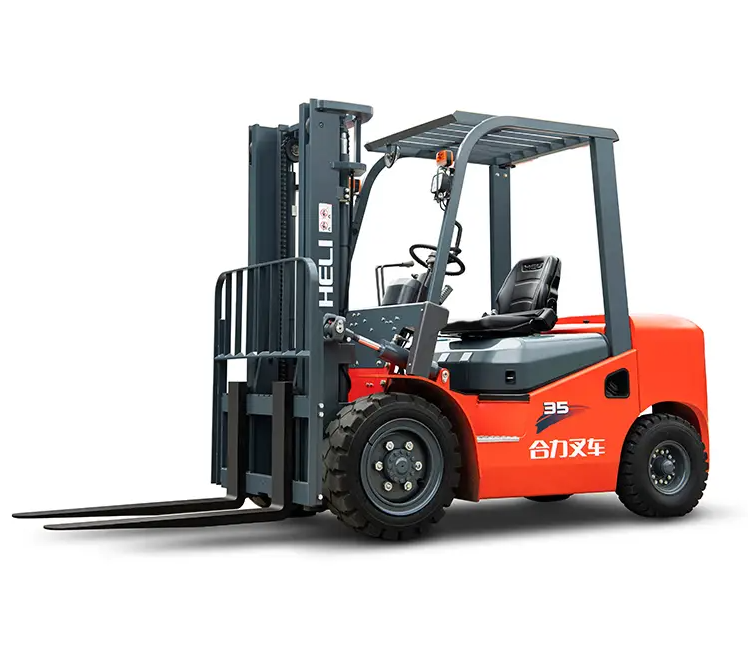

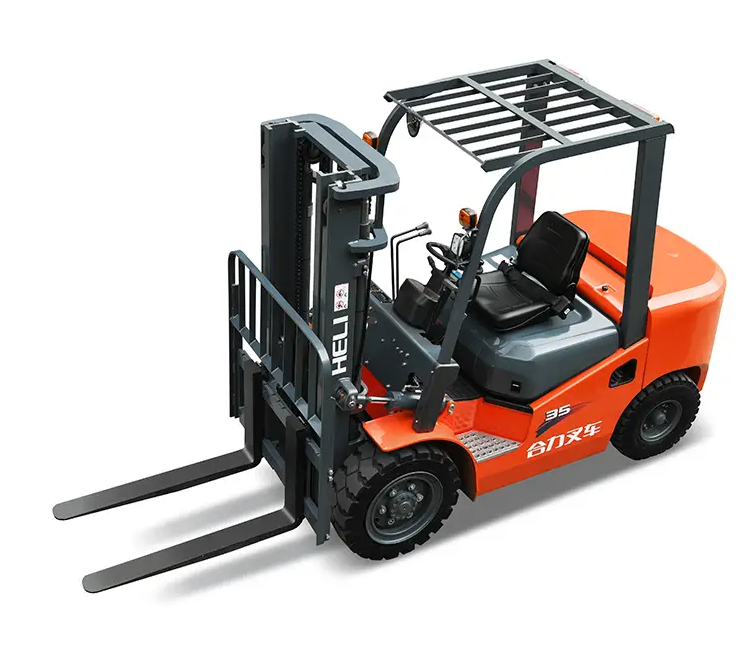

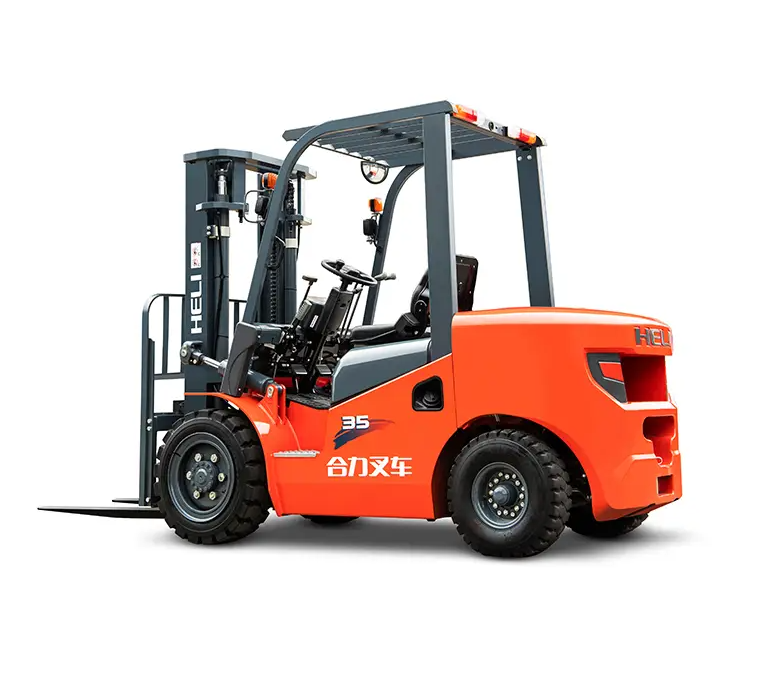

2200-8360lb K2 Series Diesel / LPG Forklift Truck

View Product Parameters

The forklift with new appearance design making it more fashionable

1. The forklift with new appearance design making it more fashionable and beautiful;
2. The core parts like gearbox and drive axle are HELI manufactured, and the key parts are imported, with a low failure rate and reliable quality;
3. Hydraulic system optimization, heat dissipation greatly improved, and the service life of hydraulic components is significantly improved;
4. Optimize the structure of the mast and forklift body,enhance the forklift stability, significantly improve electrical protection level and heat dissipation performance, and enhance the forklift reliability;
5. Cast steering axle has compact structure small deformation with load, dustproof and waterproof, long service life and high reliability;
6. Optimize the sealing form of the half shaft, strengthen the design of the wheels, and significantly improve the reliability of the drive axle assembly.

Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

Parameter

Model Designation

CP(C)D10/

CP(Q)(Y)D10

CP(C)D15/

CP(Q)(Y)D15

CP(C)D18/

CP(Q)(Y)D18

CP(C)D20/

CP(Q)(Y)D20

CP(C)D25/

CP(Q)(Y)D25

CP(C)D30/

CP(Q)(Y)D30

CP(C)D35/

CP(Q)(Y)D35

CP(C)D38/

CP(Q)(Y)D38

Load Capacitylb22003300396044005500660077008360
Load Centerin19
Wheel basein5555576464666666
Overall height(overhead guard)in8484848484858585
Overall length(without fork)in898990101103150/108108109
Overall widthin4242424545484848
Min.outside turning radiusin7375768588949597
