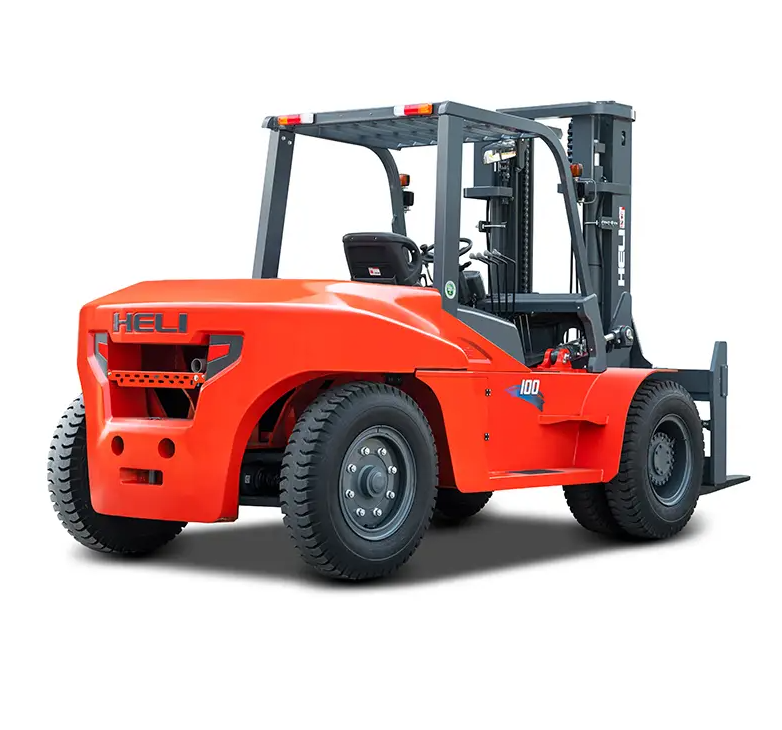

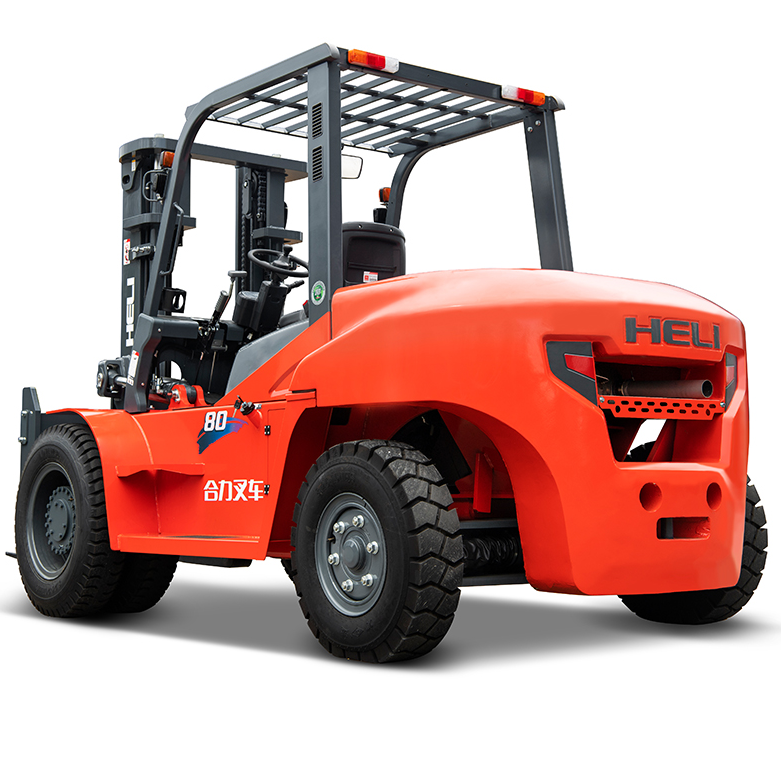

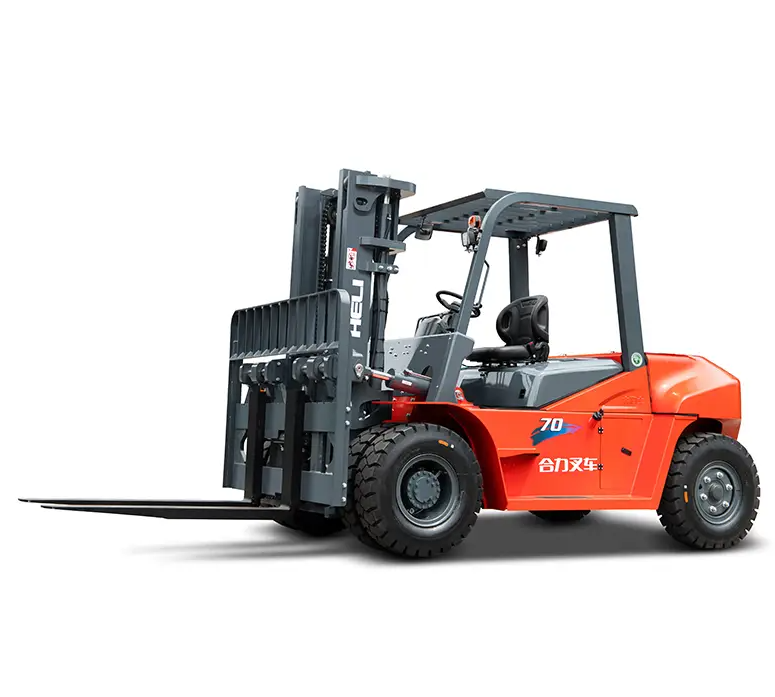

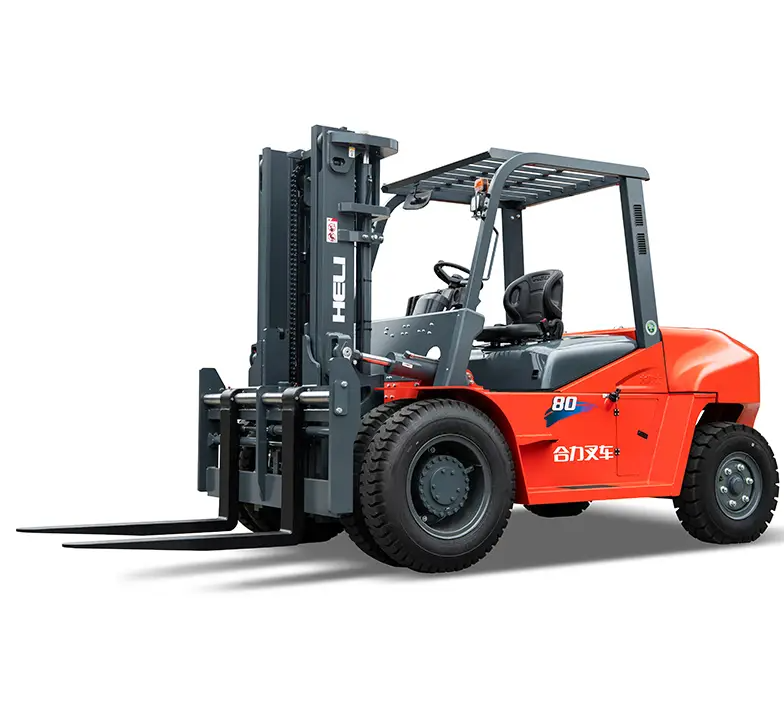

11000-22000lb K2 Series Diesel Forklift Truck

View Product Parameters

Hydraulic power-assisted braking system, braking performance is more stable and

1. Hydraulic power-assisted braking system, braking performance is more stable and reliable;
2. Large LCD CAN bus instrumentation to fully monitor the forklift status;
3. Standard with a full set of LED lamps, energy saving and environmental protection, long service life;
4. Optimized design of double thread locking mechanism, more convenient adjustment;
5. Comprehensively upgraded new intelligent shift system, preventing second gear start.
6. The forklift has abundant power to meet the needs of multi-scenario test.

Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

Parameter

Model Designation
CPCD50CPCD60CPCD70CPCD80CPCD90CPCD100
Load Capacitylb110001320015400176001980022000
Load Centerin24
Wheel basein94949494100112
Overall height(overhead guard)in96969699101101
Overall length(without fork)in140143144150156166
Overall widthin818181848585
Min.outside turning radiusin128130132134143155
